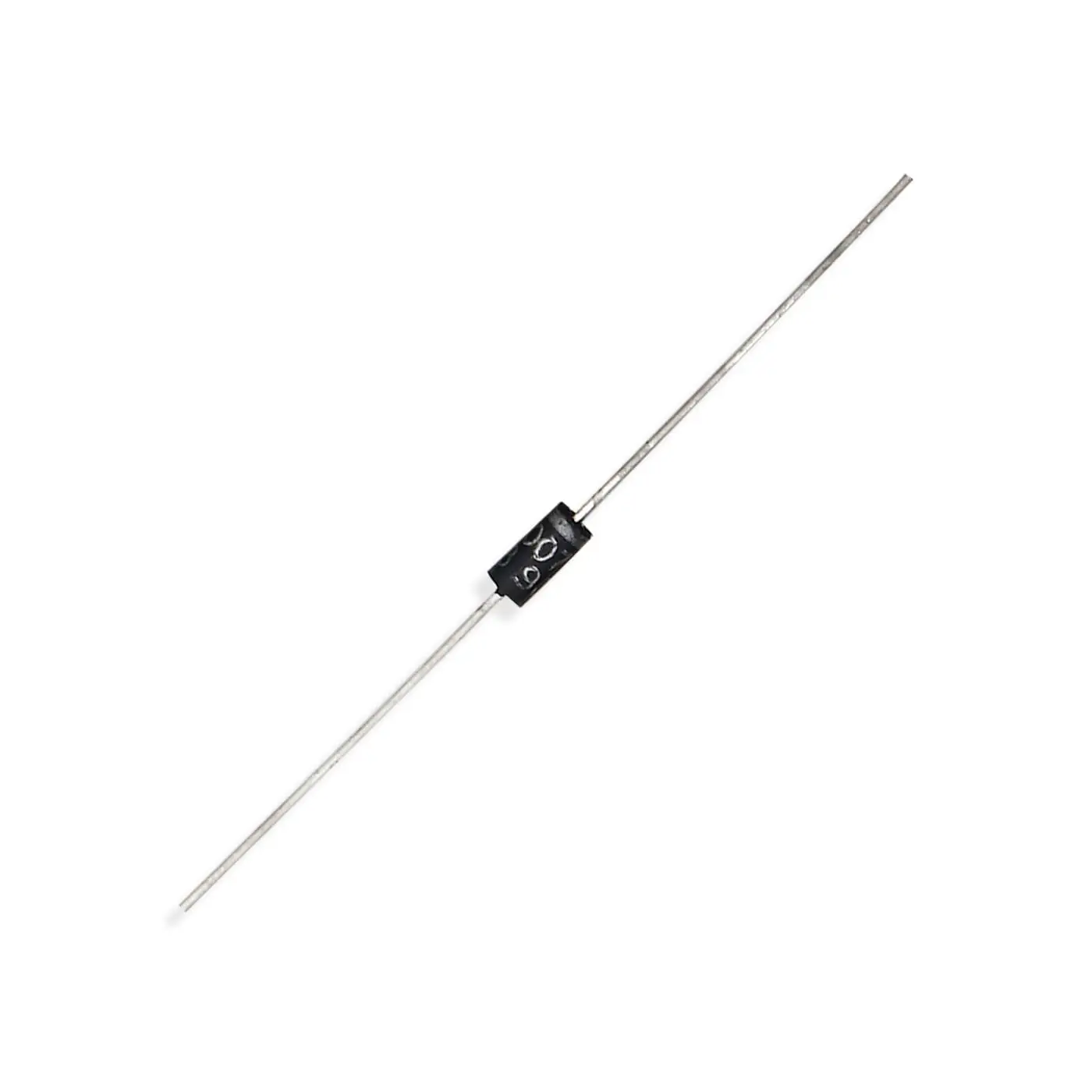

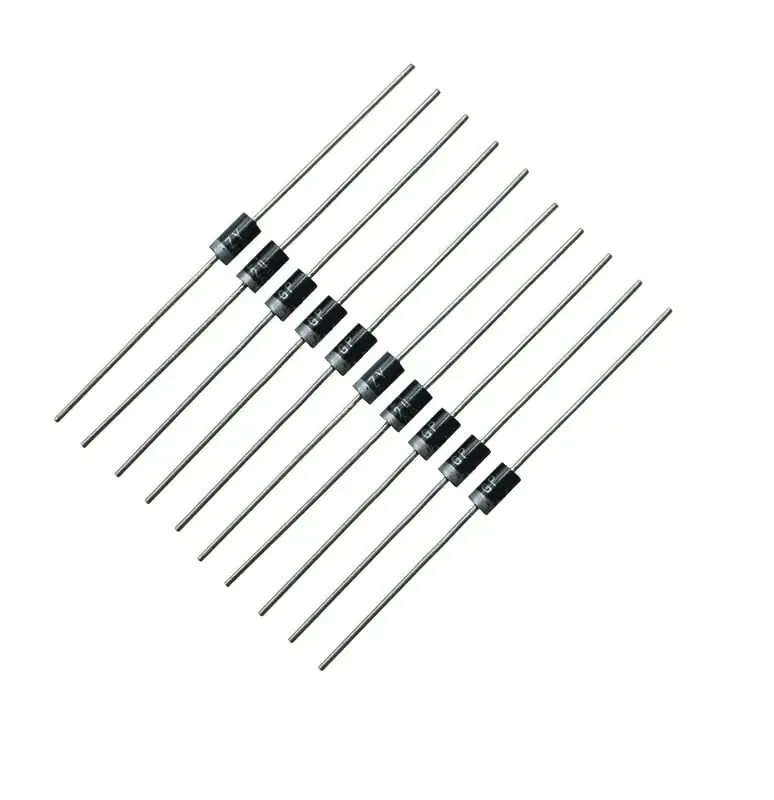

🔌 1N4007 Rectifier Diode – Reliable Power Conversion with High Voltage Tolerance

The 1N4007 is a trusted and widely used rectifier diode designed for robust AC to DC conversion in power supply circuits. From beginner electronics projects to professional-grade industrial applications, the 1N4007 ensures dependable performance with high voltage tolerance and low leakage current.

🔹 Key Features:

• High Voltage Handling: Supports reverse voltage up to 1000V, perfect for a wide range of rectification tasks.

• Standard Current Rating: Can handle up to 1A continuous forward current, making it suitable for general-purpose applications.

• Efficient Rectification: Converts alternating current to direct current with minimal power loss.

• Compact Design: Small DO-41 package makes it ideal for space-constrained circuits.

🔹 Specifications:

• Model: 1N4007

• Maximum Repetitive Reverse Voltage (VRRM): 1000V

• Maximum RMS Voltage: 700V

• Average Forward Current (IO): 1A

• Peak Surge Current (IFSM): 30A

• Forward Voltage Drop (VF): 1.1V max at 1A

• Recovery Time: Standard

• Package: DO-41

• Approximate Weight: ~0.35 grams per unit

🔹 Applications:

• Power supply rectification

• Battery charging circuits

• Inverters and motor controllers

• Voltage regulation systems

• Hobby and prototyping projects

Power up your projects with the 1N4007 diode—your go-to solution for efficient and reliable rectification!
