DC Motor – 775 12V high RPM Bush Type by Ekastore

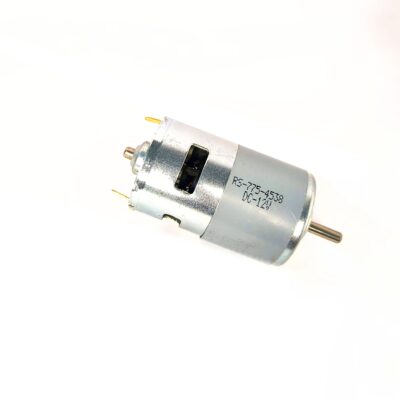

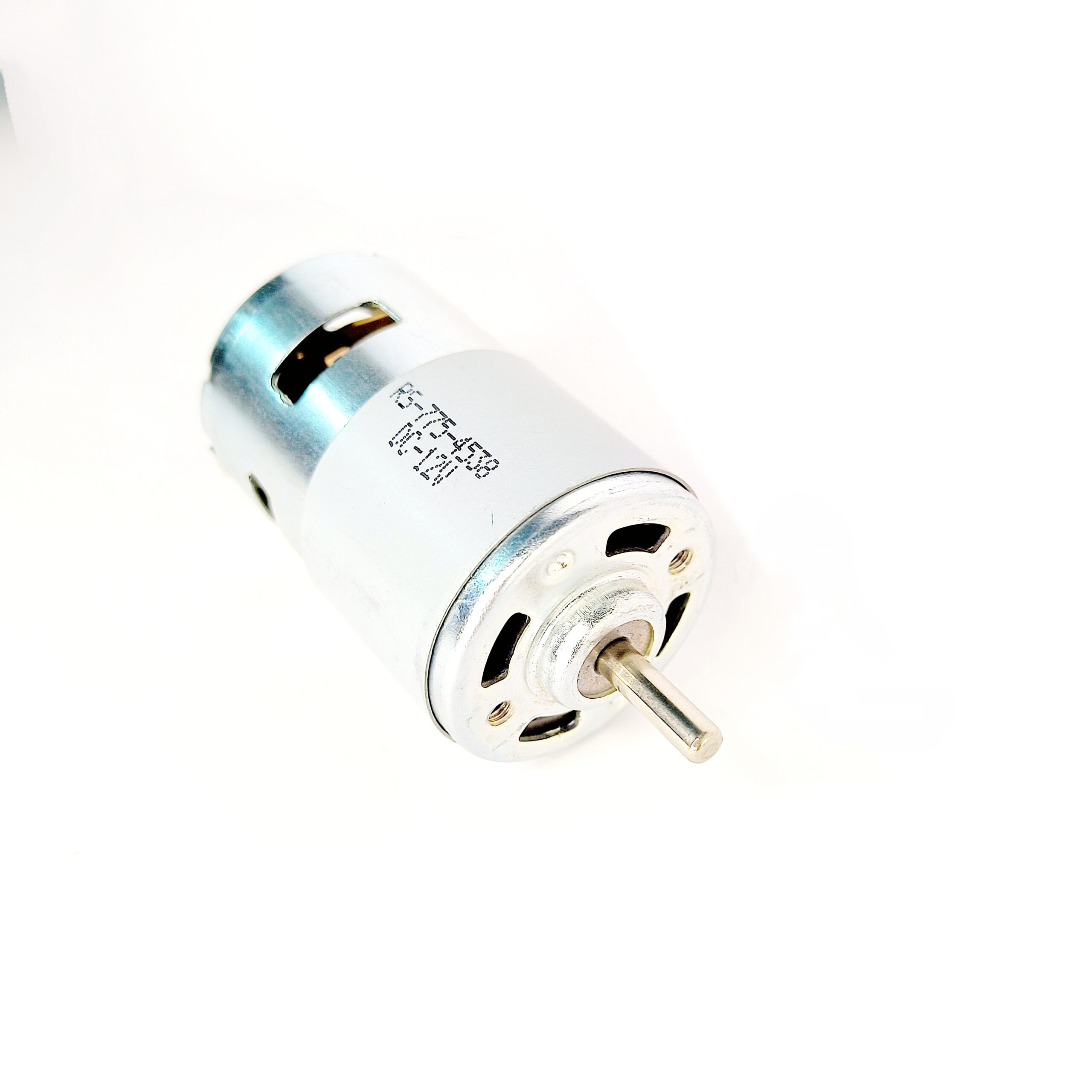

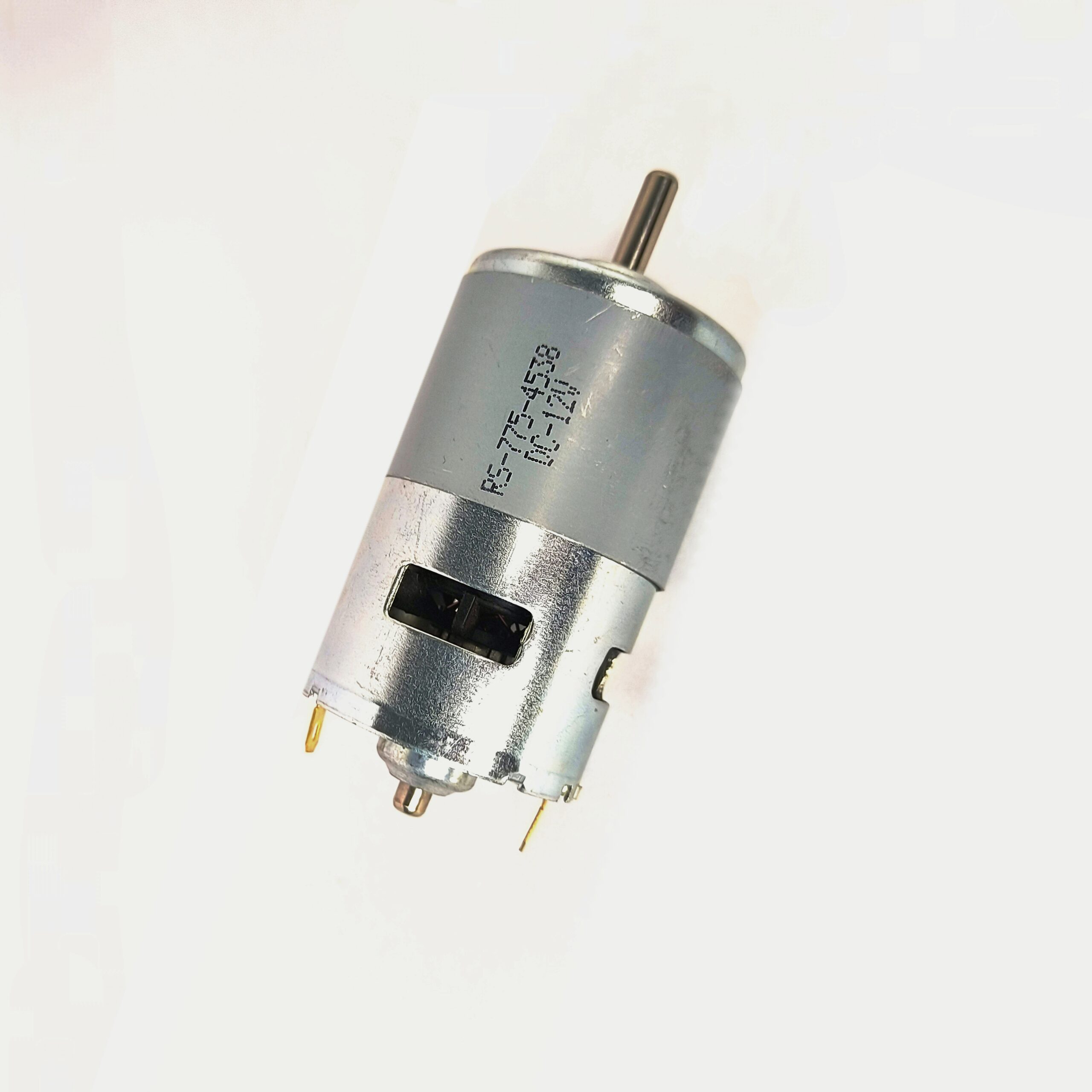

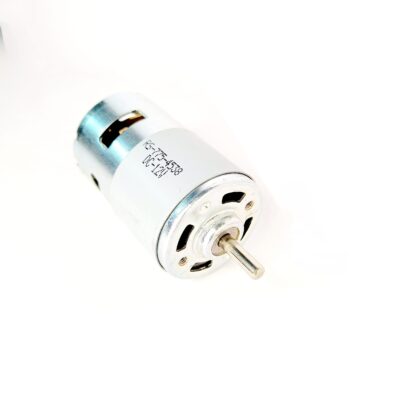

⚡ 775 High-Performance DC Motor 12V for Robotics and DIY Projects (Type 2: Standard Round Shaft RS-775 with Bush Bearing)
The 775 High-Performance DC Motor is a powerful and reliable motor designed for a wide range of heavy-duty applications. Operating at 12V, this RS-775 model with a standard round shaft and bush bearing ensures excellent performance, making it perfect for robotics, automation systems, DIY projects, and other demanding tasks.

🔹 Key Features:

• High Torque and Speed: Provides excellent torque output and fast rotational speed, ideal for driving wheels, mechanisms, and other heavy components.

• Standard Round Shaft: Easy to couple with gears, pulleys, wheels, or custom attachments.

• Bush Bearing Design: Offers good support and smooth rotation with reduced friction for enhanced motor life in general applications.

• Robust Build Quality: Durable metal casing designed to withstand wear and heat during extended operation.

• Versatile Application: Suitable for a wide range of projects from robotics to industrial automation and custom machinery.

🔹 Specifications:

• Motor Type: RS-775 DC Motor

• Voltage Rating: 12V DC (Can typically operate safely from 6V to 18V with varying speed and torque)

• Shaft Type: Standard Round Shaft

• Shaft Diameter: ~5mm

• Shaft Length: ~18mm

• Bearing Type: Bush Bearing

• No-load Speed: Typically around 3000–8000 RPM (varies with voltage)

• Torque: High starting torque, ideal for load-bearing applications

• Body Dimensions: Diameter ~42mm, Length ~70mm

• Mounting Holes: Standard 2-hole mount for easy chassis or frame installation

• Weight: Approximately 300–350 grams

🔹 Applications:

• Robotics: Driving heavy robot wheels, arms, and mechanisms.

• DIY Electric Vehicles: Mini scooters, e-bikes, or small electric carts.

• Automation Projects: Conveyor belts, automatic doors, and machine tools.

• Agricultural Machinery: Mini irrigation pumps, grain handling systems.

• Prototyping and Hobby Projects: Perfect for building custom machines and testing mechanical designs.

The 775 High-Performance DC Motor 12V (Type 2 with a standard round shaft and bush bearing) is a strong, dependable choice that brings robust power to your DIY and professional projects, offering high efficiency, durability, and flexibility!
