Types of Motors

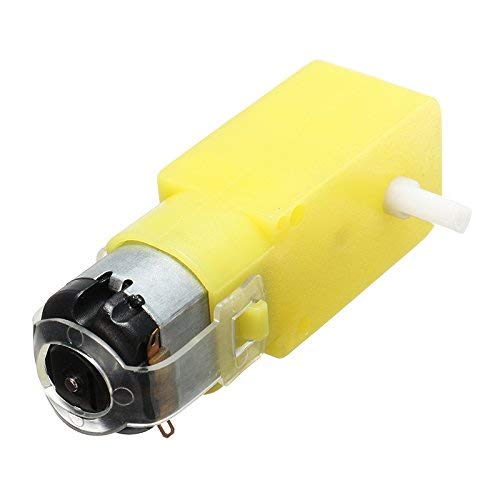

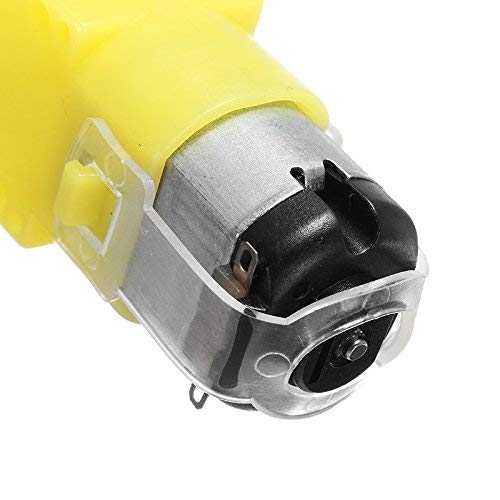

BO MOTOR L-SHAFT
- Low density: lightweight, low inertia.
- Capability to absorb shock and vibration as a result of elastic compliance.
- Ability to operate with minimum or no lubrication, due to inherent lubricity.
- The relatively low coefficient of friction.
- Operating Voltage(VDC): 3~12
- Shaft Length (mm): 8.5
BO MOTOR DUAL SHAFT
- Low density: lightweight, low inertia.
- Capability to absorb shock and vibration as a result of elastic compliance.
- Ability to operate with minimum or no lubrication, due to inherent lubricity.
- The relatively low coefficient of friction.
- Operating Voltage(VDC): 3~12
- Shaft Length (mm): 8.5
BO MOTOR SINGLE SHAFT
- Low density: lightweight, low inertia.
- Capability to absorb shock and vibration as a result of elastic compliance.
- Ability to operate with minimum or no lubrication, due to inherent lubricity.
- The relatively low coefficient of friction.
- Operating Voltage(VDC): 3~12
- Shaft Length (mm): 8.5
Applications
Line Follower Robot
It is an automated guided vehicle, which follow a visual line embedded on the floor or ceiling. Usually, the visual line is the path in which the line follower robot goes and it will be a black line on a white surface but the other way is also possible.
Obstacle Avoider Robot
It is an intelligent device which can automatically sense the obstacle in front of it and avoid them by turning itself. If the distance is less than the defined distance to avoid obstacle means there is some obstacle ahead. So robot will stop for a while.
Self Balancing Robot
It is a two-wheeled robot which balances itself so that it prevents itself from falling. This concept is somewhat similar to the operation of a unicycle, similarly the self-balancing robot balances by moving in the same direction of the inclination.
Firefighting Robot
It has a water tanker to pump water and spray on fire; it is controlled through wireless communication. At the receiver side, two motors are interfaced to the 8051 microcontroller wherein two of them are used for the movement of the vehicle and the remaining one to place the arm of the robot.
Specification-
| Brand | Generic |
| Type | BO Motor Straight |
| Operating Voltage(VDC) | 5~12 V |
| No Load Current | 40-180mA. |
| Material | Plastic |
| Shaft Diameter | 5.2mm |
| Shaft Length | 8mm |
| Rated Speed(After Reduction) | 150 RPM |
| Motor Length | 70mm |
| Width | 22.3mm |
| Depth with shaft | 28mm |
* Product Images are shown fo90or illustrative purposes only and may differ from the actual products.
