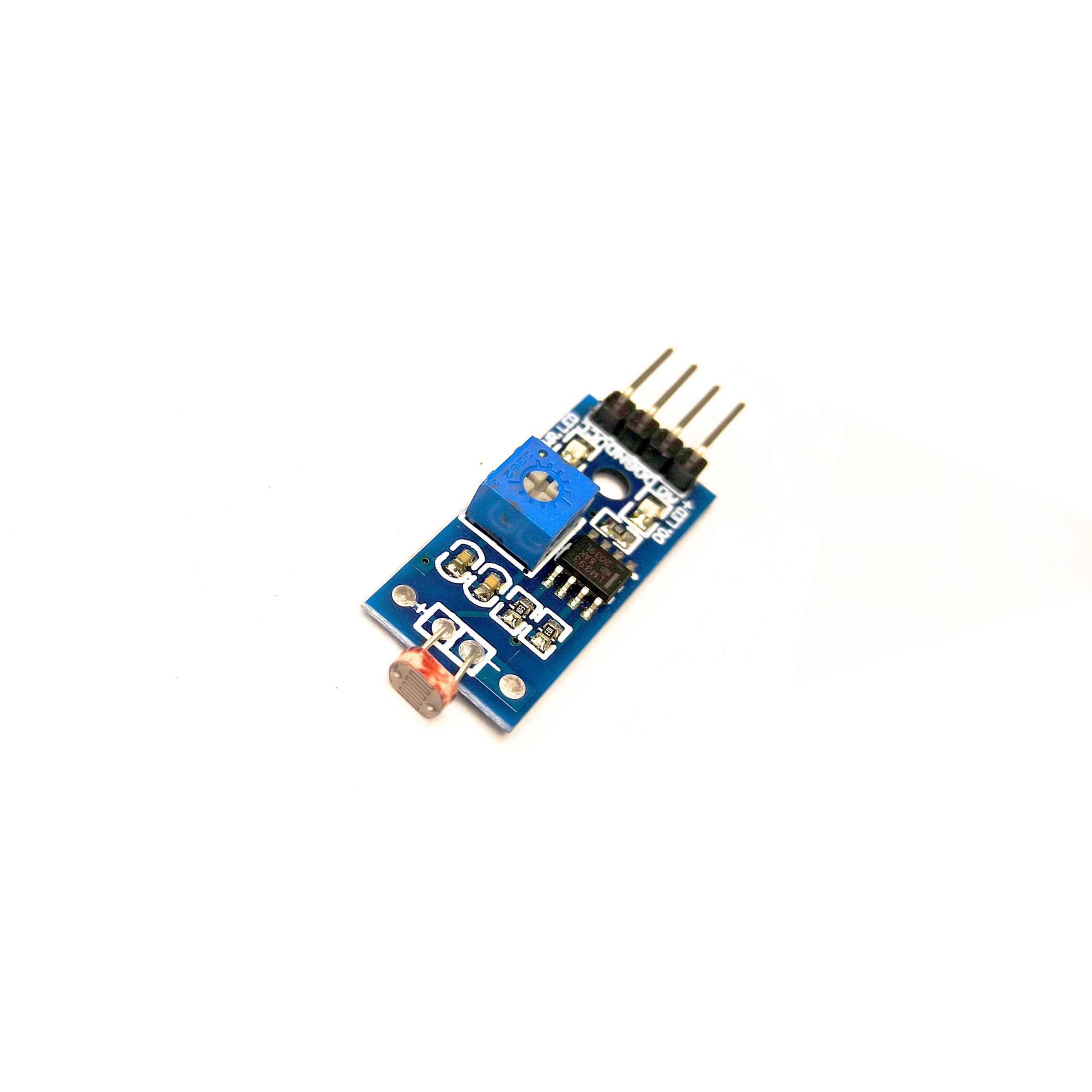

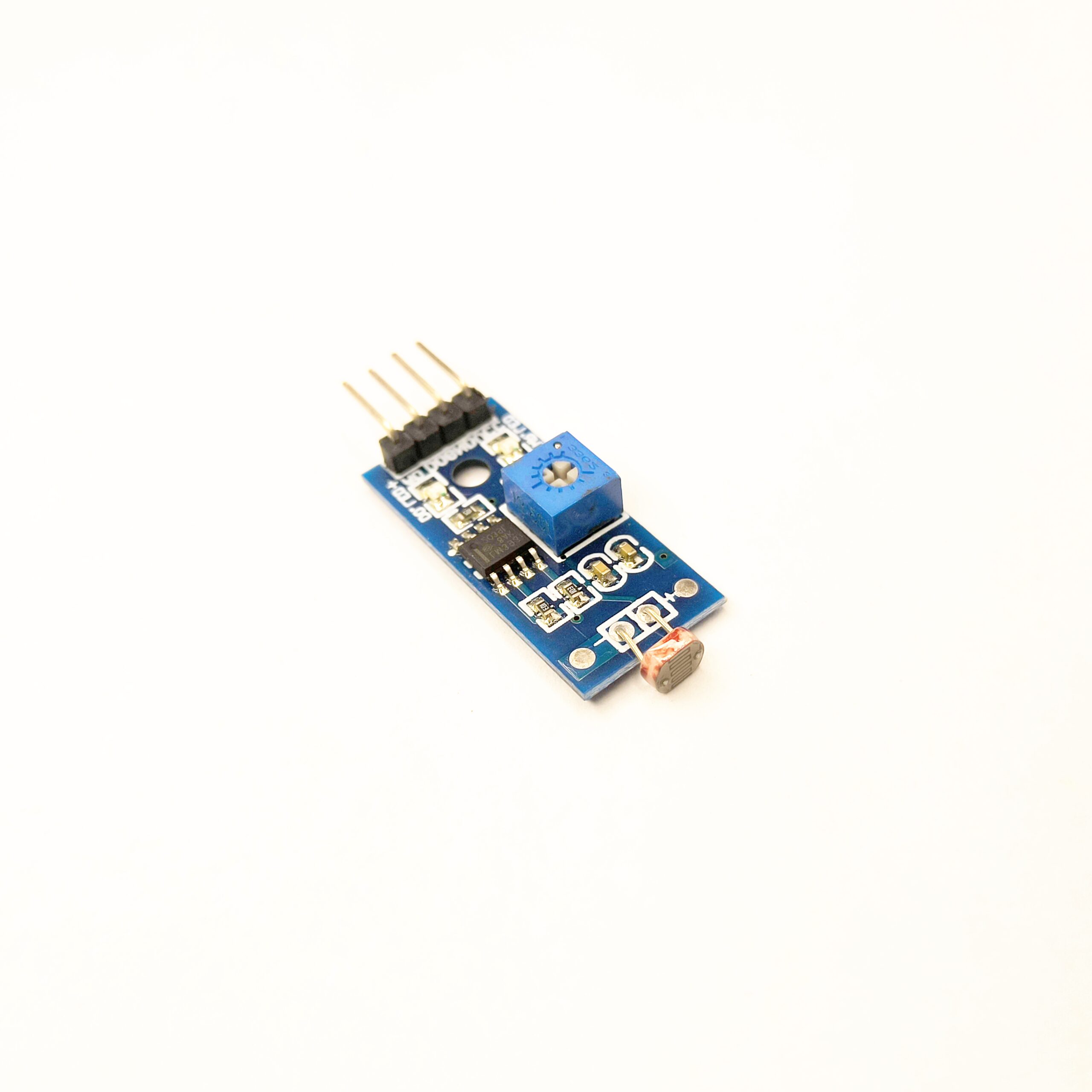

🌞 LDR Sensor Module – Light Detection Module by ekastore
Add light sensitivity to your electronic projects with the LDR Sensor Module by ekastore. Based on a photoresistor (LDR – Light Dependent Resistor), this module detects changes in ambient light and outputs both analog and digital signals, making it ideal for automation, smart lighting, and daylight-triggered systems.
Whether you’re building a light-activated switch, streetlight controller, or an Arduino-based light meter, this compact module makes integrating light detection into your circuits simple and effective.
🔧 Technical Summary:
| Specification | Detail |
|---|---|
| Sensor Type | Light Dependent Resistor (LDR) |
| Operating Voltage | 3.3V – 5V DC |
| Output Type | Analog + Digital (DO via comparator) |
| Comparator IC | LM393 (for digital output thresholding) |
| Adjustable Sensitivity | Yes (via onboard potentiometer) |
| Indicator LEDs | Power and Digital Output Indicator |
| Mounting | 3-pin interface (VCC, GND, DO/AO) |
🔊 Why You’d Use It:
-
Automatic Lights: Turn lights on/off based on room brightness.
-
Smart Garden Systems: Adjust irrigation based on sunlight levels.
-
Security Systems: Trigger alarms or cameras when light conditions change.
-
Light Level Monitors: Log or display brightness using analog output.
-
Robotics & IoT Projects: Detect obstacles based on light/shadow variation.
📦 Package Includes:
-
1 × LDR Sensor Module (ekastore branded)
