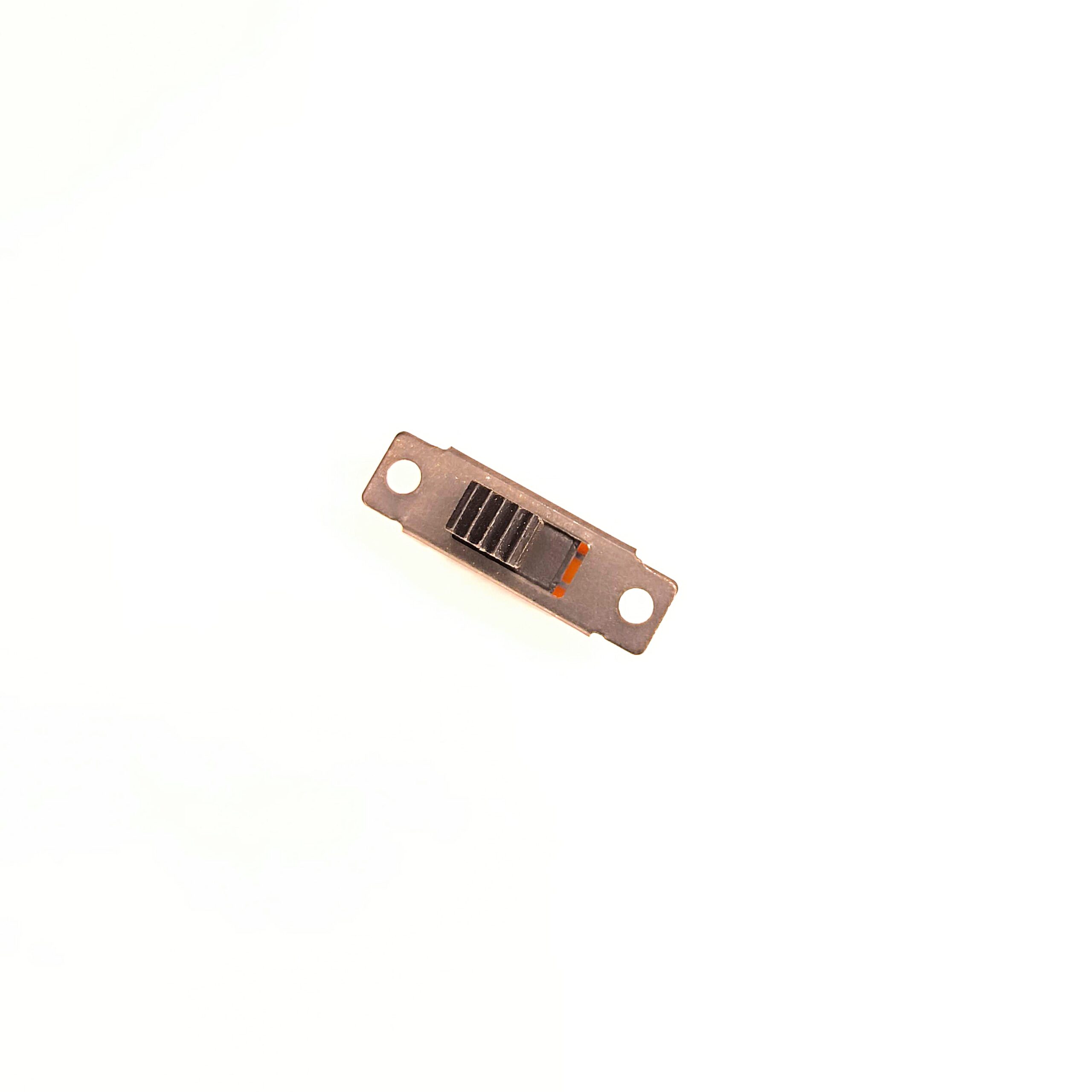

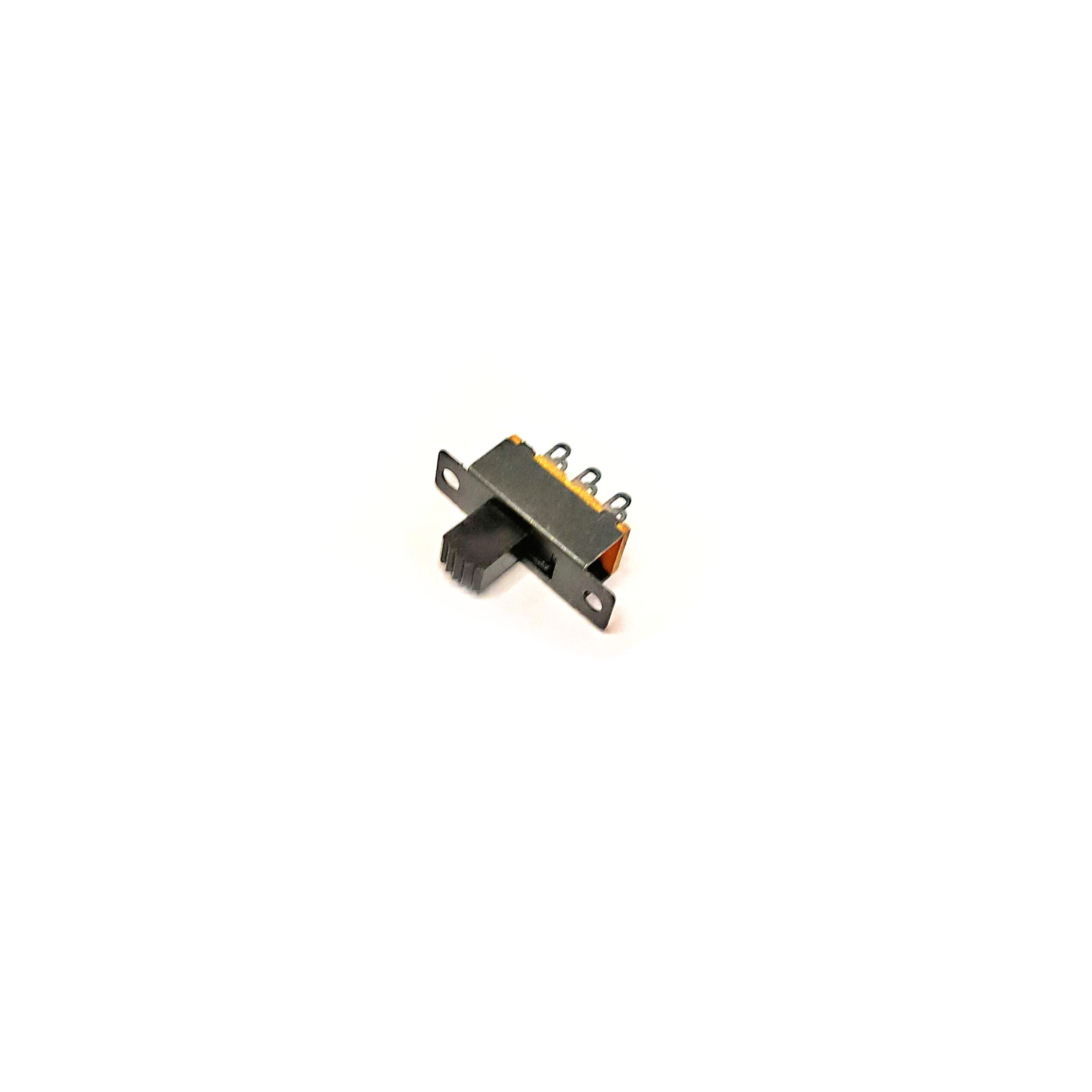

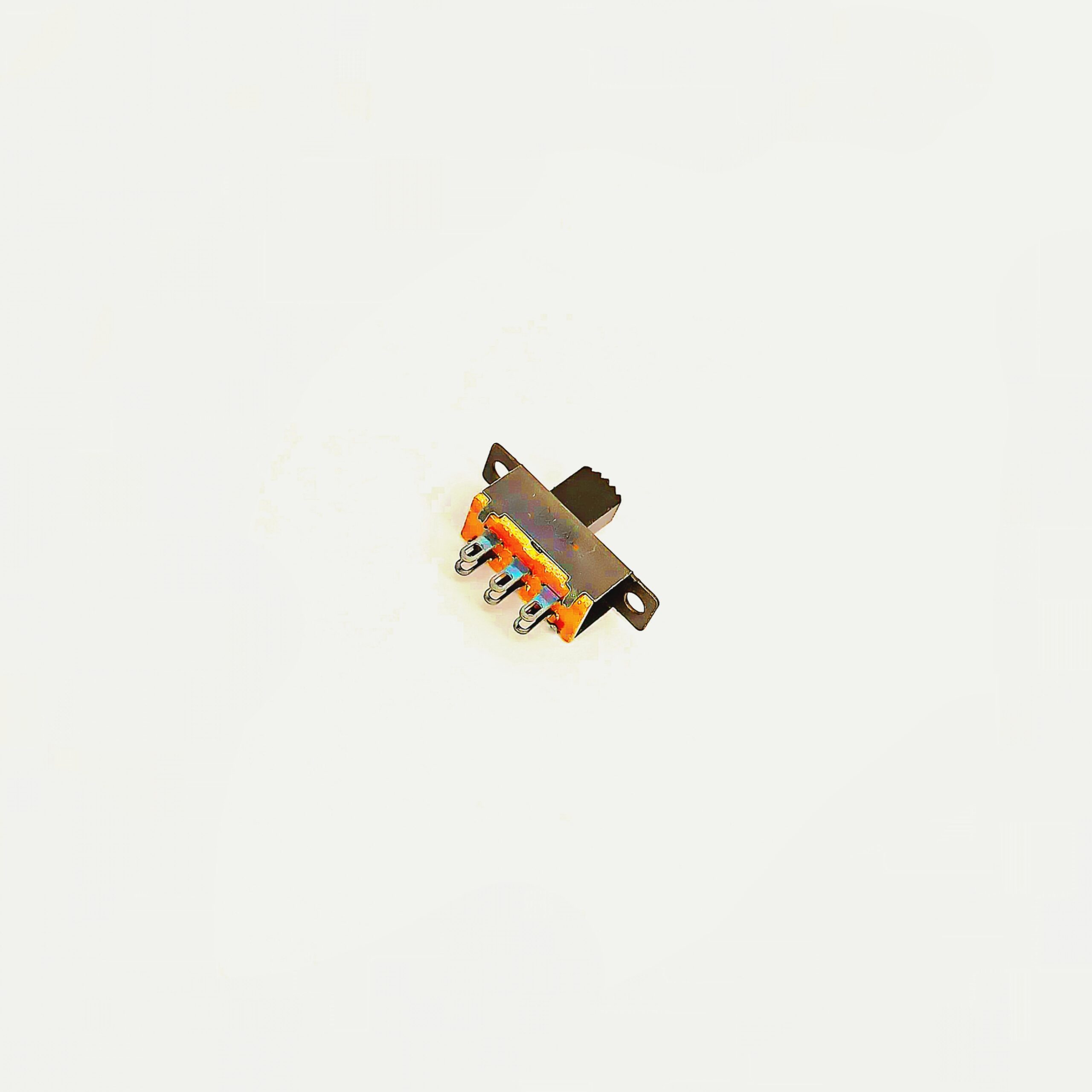

🔲 Miniature On-On Slide Switch – 6-Pin DPDT (Double Pole Double Throw)
The Miniature On-On Slide Switch (DPDT, 6-Pin) is a compact and reliable switching component perfect for controlling circuits manually. Its Double Pole Double Throw configuration allows you to connect two separate circuits simultaneously, making it a versatile choice for hobby, prototyping, and professional electronic applications.
🔹 Key Features:
DPDT Configuration: Controls two circuits at once with two separate switch paths.
6-Pin Design: Easy integration into breadboards, PCBs, and custom setups.
On-On Action: Switches between two active positions—ideal for mode selection, polarity reversal, and signal routing.
Compact and Durable: Built with quality materials to ensure long life and stable performance.
🔹 Specifications:
Switch Type: DPDT (Double Pole Double Throw)
Contact Type: On-On (Maintained positions)
Number of Pins: 6
Current Rating: Typically up to 3A at 250V AC (varies slightly by manufacturer)
Mounting Style: Through-hole (solderable)
Material: Metal actuator with plastic housing
Actuator Type: Slide
Dimensions: Miniature (varies; generally around 13mm x 6mm body size)
Weight: ~2 grams
🔹 Applications:
DIY electronics and robotics projects
Signal routing and switching
Power control circuits
Mode selection switches
Audio and instrument circuits
Smooth operation, small footprint, and high reliability make the Miniature On-On 6-Pin DPDT Slide Switch a must-have for your electronic projects!
