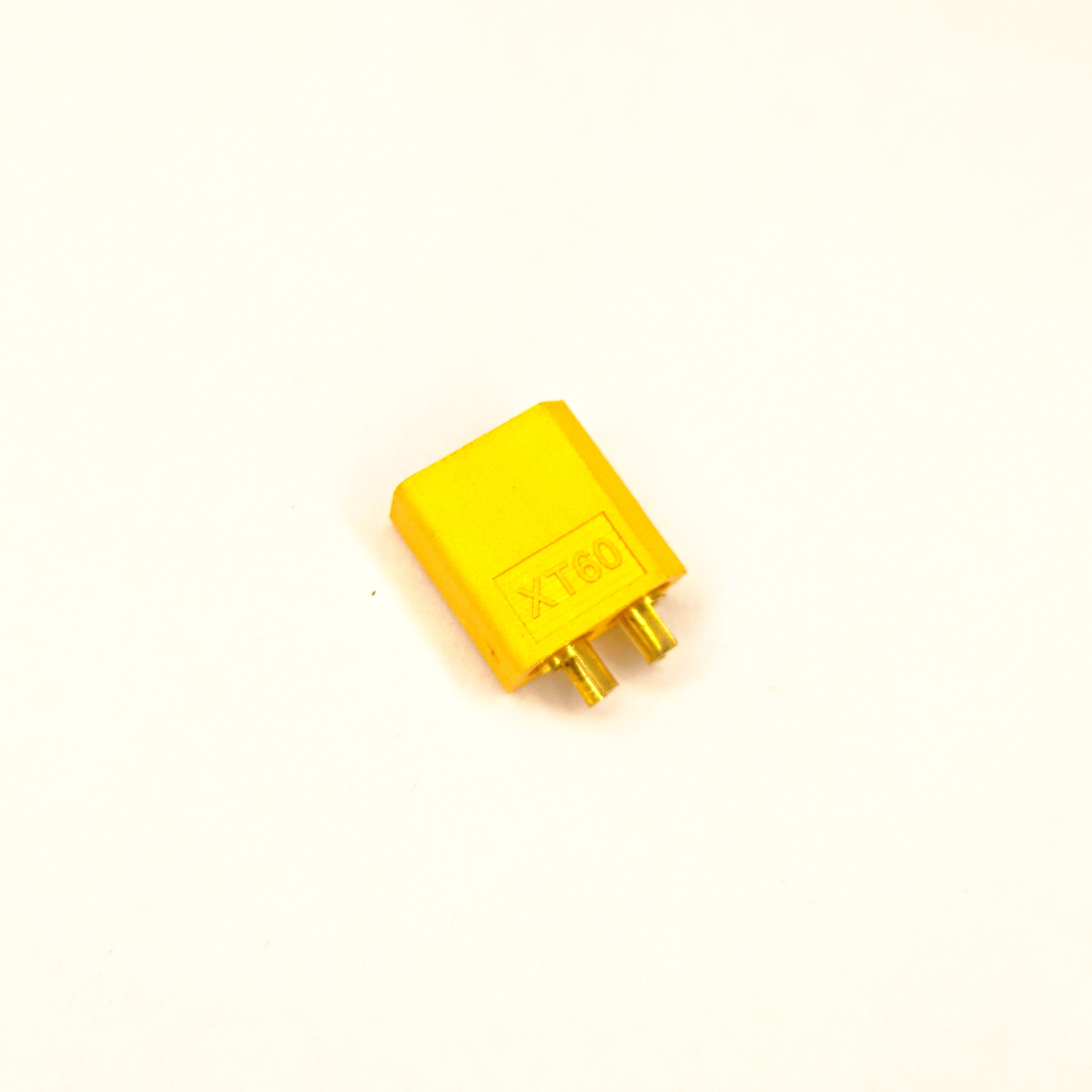

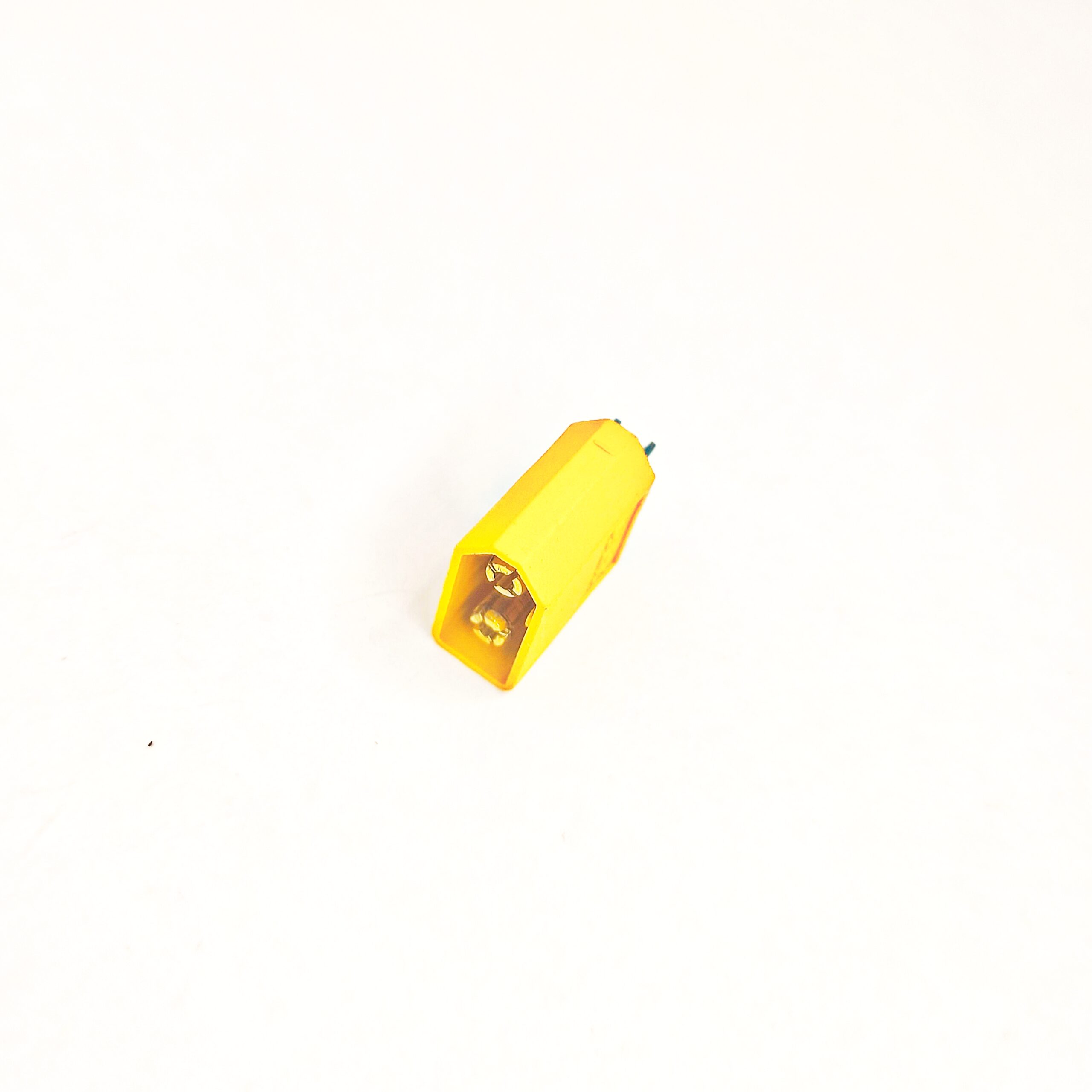

🔋 XT60 Male Connector by ekastore – High-Current DC Power Connector
Ensure secure and reliable power delivery with the XT60 Male Connector by ekastore, designed for high-current DC applications. Made with gold-plated contacts and durable nylon housing, the XT60 connector provides a tight, heat-resistant, and low-resistance connection — making it a top choice for RC vehicles, drones, lithium battery packs, and high-power DIY electronics.
Its compact design and solder-friendly terminals make it easy to integrate into custom power systems where performance and safety matter most.
🔧 Technical Summary:
| Specification | Detail |
|---|---|
| Brand | ekastore |
| Connector Type | XT60 Male |
| Rated Current | Up to 60A (continuous), >100A (burst, short-time) |
| Rated Voltage | DC up to 500V (depends on system insulation) |
| Contact Material | Gold-plated copper |
| Housing Material | Heat-resistant nylon |
| Connection Type | Solder |
| Compatibility | XT60 Female Connector (standard polarity) |
| Color | Yellow (standard XT60 color) |
🎯 Ideal For:
-
Lithium Polymer (LiPo) battery connections
-
RC cars, drones, planes, and boats
-
DIY e-bikes and electric scooters
-
Solar-powered systems and power distribution blocks
-
High-current robotics and embedded hardware projects
📦 Package Includes:
-
1 × XT60 Male Connector by ekastore
Reviews
There are no reviews yet.
